Applications
One unit, five modes, dozens of jobs on the line.
Looking for defects, verifying assembly, taking a measurement? Browse the applications by inspection mode and by industry.
Catalogue
Sample applications.
Filter by inspection mode or by industry. Each application page says what is being looked for, how the job is set up on the line, and its application references.
Part identificationPart identification on a skid
Recognises the body part arriving on a skid and tells the robot which program to run.
Automotive
Anomaly and defect detectionCap defect detection
Rejects cracked, unclosed and hinge-damaged caps on a high-speed conveyor.
Packaging · Food and beverage
MeasurementHole position measurement
Measures the position of a 6 mm hole to a 0.01 mm tolerance as the part passes.
Automotive · Metalworking
Anomaly and defect detectionSurface scratch and dent detection
Catches scratches, dents and surface disturbances on sheet and machined parts at line speed.
Metalworking · Automotive · White goods
Anomaly and defect detectionBurr and cut defect detection
Separates burrs, tears and incomplete cut-offs along stamped edges.
Metalworking
Anomaly and defect detectionCrack and tear detection
Catches the start of a crack and the thinning tear that follows forming.
Metalworking · Automotive
Anomaly and defect detectionWeld seam appearance inspection
Checks the seam surface for spatter, irregularity and interruption.
Automotive · Metalworking
Anomaly and defect detectionShort shot and flash detection
Separates unfilled regions and flash along the parting line on moulded parts.
Plastics and injection moulding
Anomaly and defect detectionSink and burn mark detection
Catches sink marks over ribs and the burn marks left by trapped gas.
Plastics and injection moulding · White goods
Anomaly and defect detectionPaint and coating defect detection
Separates dust inclusions, runs and orange-peel texture on painted surfaces.
Automotive · White goods
Anomaly and defect detectionSurface contamination detection
Catches fibre, dust, hair and oil marks on a surface that has to be clean.
Food and beverage · Pharmaceutical packaging · Plastics and injection moulding
Anomaly and defect detectionGlass scratch and edge chip detection
Separates surface scratches and edge break-out on transparent panels.
Automotive
Assembly and missing partFastener presence verification
Confirms every screw, clip and rivet is fitted and fully seated.
Automotive · White goods · Metalworking
Assembly and missing partConnector seating and pin check
Checks that the connector is fully mated, the latch closed and the pins undamaged.
Automotive · Electronics
Assembly and missing partGasket and O-ring presence
Checks that the seal is seated in its groove, neither missing nor twisted.
Automotive · Plastics and injection moulding · White goods
Assembly and missing partClosure presence and seating
Confirms the cap is fitted, sitting level and not cross-threaded.
Food and beverage · Packaging
Assembly and missing partBlister cavity verification
Confirms every cavity holds one intact tablet, with none empty or broken.
Pharmaceutical packaging
Assembly and missing partKit content and count verification
Confirms in one frame that the set is complete and no wrong part slipped in.
Pharmaceutical packaging
Code readingData-matrix reading
Reads the laser-marked code and ties the part to its own record.
Automotive · Electronics · Pharmaceutical packaging
Code readingBarcode reading and product verification
Reads the barcode on the pack and checks it against the product the line is running.
Food and beverage · Packaging
Code readingDate and lot code legibility
Confirms the expiry date and lot code were printed and can be read.
Food and beverage · Pharmaceutical packaging
Code readingLabel presence, position and content
Checks that the label is present, sitting straight and correct for the product.
Food and beverage · Pharmaceutical packaging · Packaging
Code readingSerial number matching
Reads the serial number on the part and matches it against the work order.
Automotive · Electronics · Metalworking
MeasurementEdge and profile measurement
Measures length, width and corner geometry as the part goes past.
Metalworking · Plastics and injection moulding
MeasurementGap and flush measurement
Measures the gap between adjacent panels and the step between their surfaces.
Automotive · White goods
MeasurementThread presence and pitch check
Checks that the thread was cut, the pitch is even and the first threads are intact.
Metalworking · Automotive
MeasurementFill level measurement
Measures the liquid level in bottles and jars and flags underfill and overfill.
Food and beverage · Pharmaceutical packaging
MeasurementLabel position tolerance
Measures label height and rotation and removes what falls outside tolerance.
Food and beverage · Packaging
Part identificationVariant discrimination
Tells near-identical variants apart so the line processes the right one.
Automotive · White goods · Metalworking
Part identificationWrong part and mix-up detection
Catches the foreign part mixed into the box or the tray.
Metalworking · Electronics
Part identificationOrientation verification
Confirms the part faces the right way and is not reversed or on its side.
Electronics · Plastics and injection moulding · Food and beverage
Part identificationColour and shade discrimination
Separates batch-to-batch shade drift and uneven colour within a part.
Plastics and injection moulding · Packaging

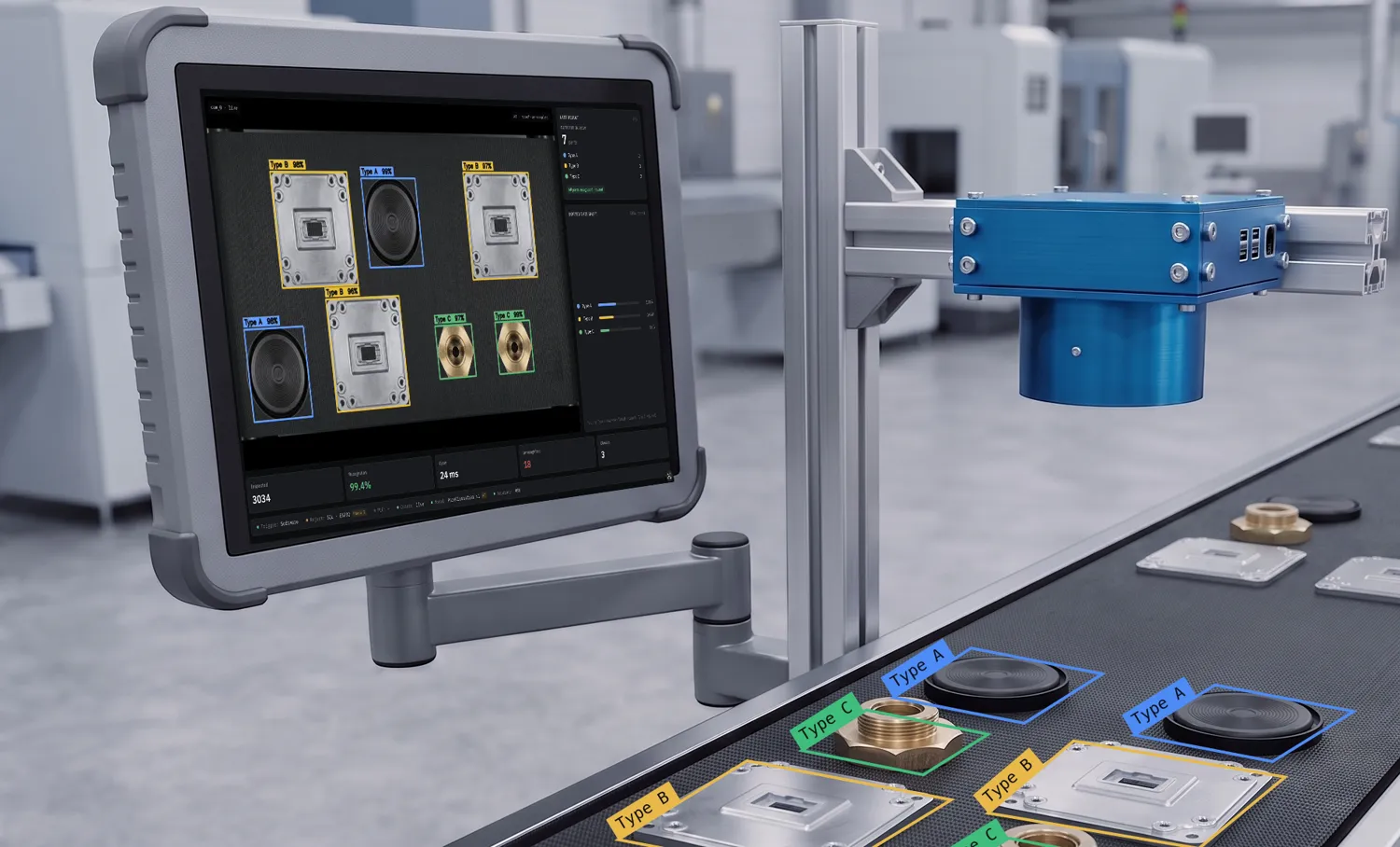

Part identificationClassification and sorting
Sorts mixed parts into their classes and routes each to the right lane.
Food and beverage · Metalworking
Part identificationPart counting
Counts the parts in a tray or box in one frame and reports what is missing.
Packaging · Metalworking
Let us test your part.
We bring the unit to your line and measure your own part at your own line speed. The quote comes after that measurement.
