Anomaly and defect detection
Weld seam appearance inspection
The inspection point
How a weld seam looks is the fastest way to read the state of the process from outside: rising spatter, a narrowing seam or an interrupted bead are usually the first signs that wire feed, gas or speed has drifted. The inspection is limited to the surface; internal defects such as porosity require a different method.
How it runs on the line
The unit is mounted over the seam, far enough back to stay out of the heat. The model learns the appearance of good seams; spatter build-up, uneven width and interruptions are flagged as deviation. The result reaches the station as pass/fail and the record is kept per part.
OKEven weld seam

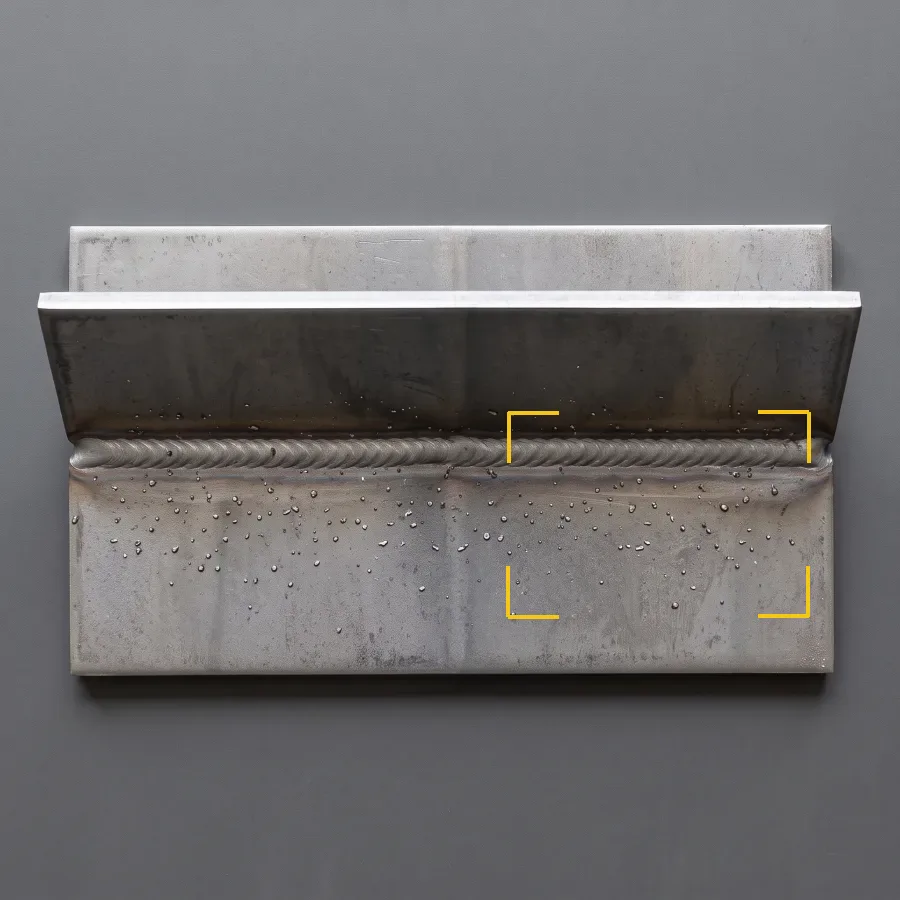

NOKSpatter beside the seam
Application references
- Mode used
- Anomaly and defect detection
- Scope
- Surface appearance, not internal defects
- Training set
- About 20 good seams
- Decision time
- ~30 ms per part
Let us test your part.
We bring the unit to your line and measure your own part at your own line speed. The quote comes after that measurement.
