Label presence, position and content
The inspection point
A label can be wrong in three separate ways: it is missing, it is crooked or lifting, or it is in the right place but belongs to another product. Each has a different consequence, and the last is the most expensive, because it means a false declaration of contents.
How it runs on the line
The unit looks at the point after labelling. Presence and position come from the image, content from reading the text and code on the label; both are compared with the product the line is running. Anything that does not match is removed.
OKLabel straight and centred

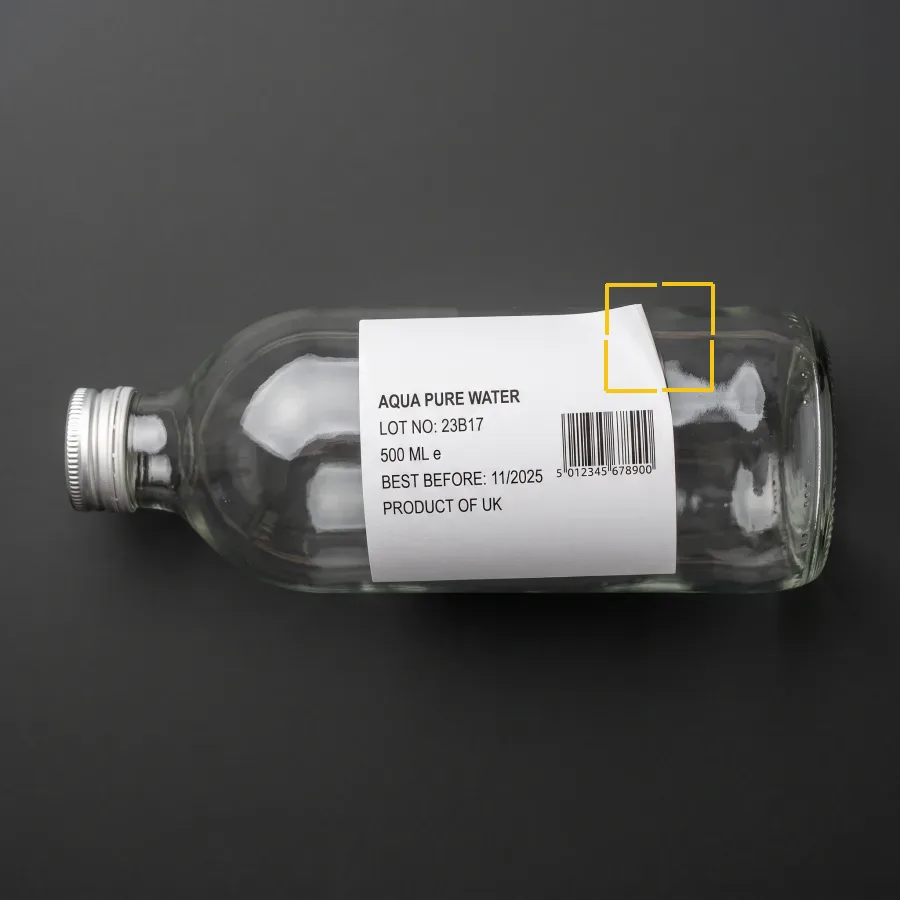

NOKLabel crooked, edge lifted
Application references
- Mode used
- Code reading
- Scope
- Presence · position · content
- Compared against
- Product record
- Decision time
- ~90 ms per part
Let us test your part.
We bring the unit to your line and measure your own part at your own line speed. The quote comes after that measurement.
