Fill level measurement
The inspection point
Underfill is a consumer complaint and overfill is product given away on every bottle; both describe the state of the filler. In transparent packaging the liquid line can vanish under certain lighting angles, and foam leads to a false reading.
How it runs on the line
A backlight turns the liquid line into a sharp boundary; on this job the lighting method decides the result. Measurement mode reports the level against a reference and bottles outside tolerance are removed. The measured values become trend data for setting the filler.
OKFilled to the neck line

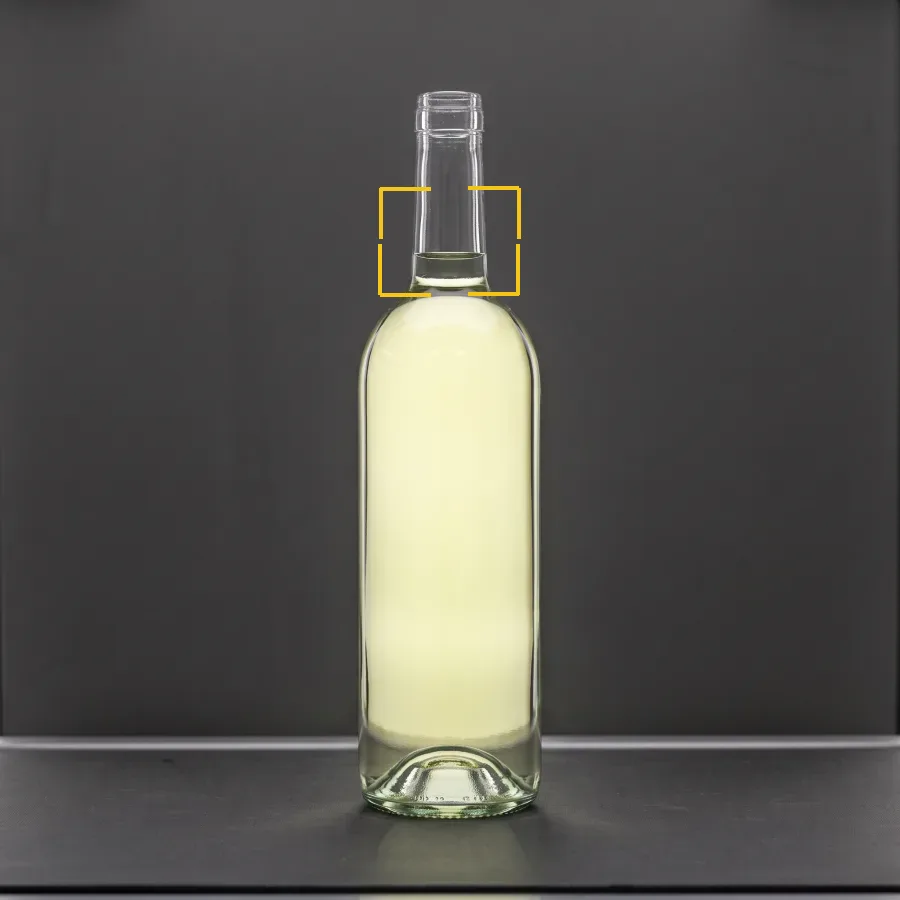

NOKUnderfilled, below the reference line
Application references
- Mode used
- Measurement
- Output
- Level value + pass/fail
- What decides it
- Backlighting
- Decision time
- ~90 ms per part
Let us test your part.
We bring the unit to your line and test your own parts at your own line speed. We build the quote around what the test shows.
