Thread presence and pitch check
The inspection point
An uncut or crushed thread announces itself on the assembly line when the bolt refuses to turn, and it stops the station. The check has to answer two questions: is there a thread, and are the first threads damaged? Since it means looking into a hole, lighting is the critical factor.
How it runs on the line
The unit is placed on the axis of the hole and the light casts shadow onto the thread crests. Measurement mode assesses the thread profile and the evenness of the pitch; a plain bore and crushed first threads are flagged as rejects. The result reaches the line.
OKThread cut complete

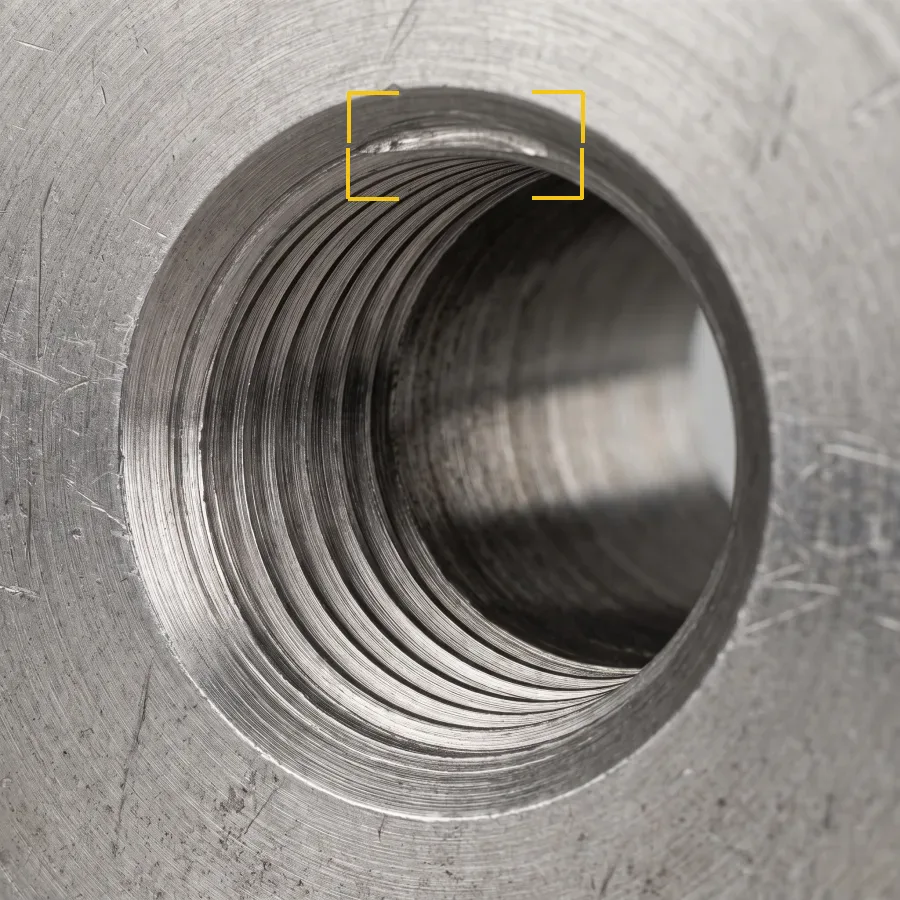

NOKFirst thread turn flattened
Application references
- Mode used
- Measurement
- Scope
- Thread presence and pitch
- What decides it
- Lighting into the bore
- Decision time
- ~90 ms per part
Let us test your part.
We bring the unit to your line and measure your own part at your own line speed. The quote comes after that measurement.
